Complete guide to underground hatch PIT systems for airports
ElectroAir PIT systems for airports
ElectroAir’s PIT systems offer a reliable and efficient way to streamline airport ground support. Designed to integrate seamlessly with modern aviation infrastructure, these systems provide secure access to power, compressed air, and pre-conditioned air (PCA) at service points.
Overview
ElectroAir’s PIT systems are engineered to deliver exceptional efficiency and reliability in the most demanding ground support environments. Whether in a busy international terminal, a specialized MRO facility, or a remote airstrip, these systems are designed to streamline operations and reduce turnaround times.
What sets ElectroAir’s PIT systems apart is their versatility. These advanced solutions can be configured to handle a wide range of critical utilities, ensuring seamless support for both aircraft and ground crews:
🔹 Power management: 400Hz, 28.5VDC, 50/60Hz – stable, high-capacity power for aircraft systems.
🔹 Compressed air: For pneumatic tools, braking systems, and essential ground support functions.
🔹 Water supply: Blue, potable, and sewer water options for full operational flexibility.
🔹 Pre-Conditioned Air (PCA): Efficiently cool or heat aircraft cabins, reducing APU dependency.
🔹 Fuel ventilation exhaust: Critical for maintaining safety during fueling operations.
🔹 Grounding: Secure grounding for enhanced safety and equipment protection.
🔹 RJ (Internet): High-speed data connectivity for seamless communication.
🔹 Fueling systems: Integrated fuel supply options for rapid refueling.
*Each PIT system can also be connected to centralized airport management systems, providing real-time status updates and diagnostics, ensuring maximum uptime and operational awareness.
Hatch PIT systems offer secure, underground service points with easy access to power, PCA, and other utilities, while Pop-up PIT systems provide a compact, retractable design that ensures minimal surface disruption and maximum space efficiency. With robust engineering and customizable options, ElectroAir PIT systems are trusted by major airports worldwide for their reliability, safety, and ease of use.
Whether you’re operating at a busy international hub, a remote airstrip, or a specialized MRO facility, ElectroAir’s PIT systems deliver the infrastructure you need to maintain operational efficiency, reduce turnaround times, and enhance overall safety.
Explore Hatch & Pop-up PIT systems

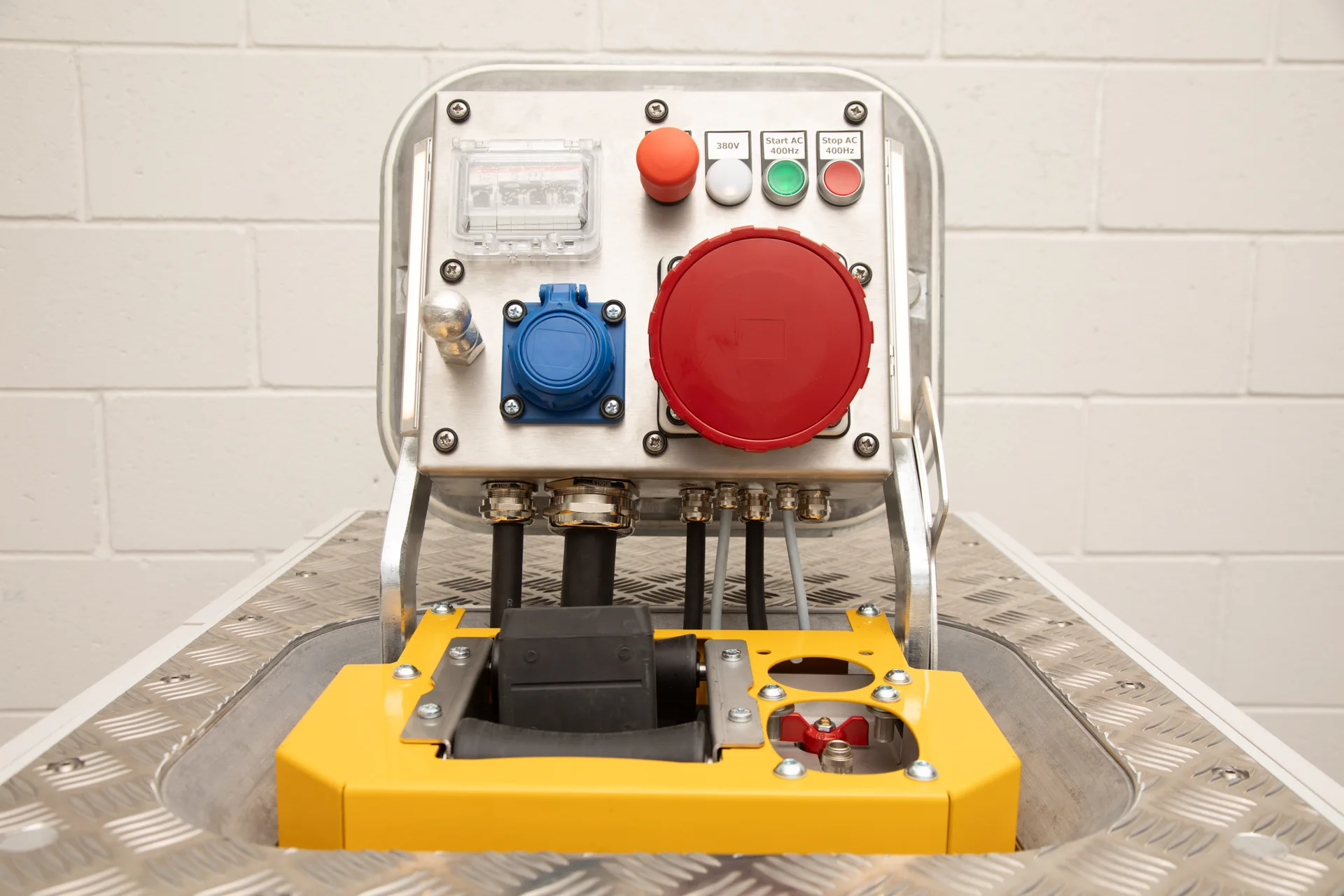

Mini Hatch PIT systems
The Mini EA-PIT is a compact, underground hatch system designed for specialized ground operations, smaller ramps, and MRO facilities. It provides reliable 400 Hz, 28.5 VDC, and 50/60Hz power options, along with connections for compressed air, potable water, blue water, sewer, grounding, RJ (Registered jack), fueling, and fuel ventilation exhaust. The weather-resistant design, with a heavy-duty lid rated for up to 90 tons (EN 124 F900), ensures safety and durability even in high-traffic areas. Ideal for regional airports and remote airfields, this system supports seamless integration into centralized monitoring networks for real-time status updates.

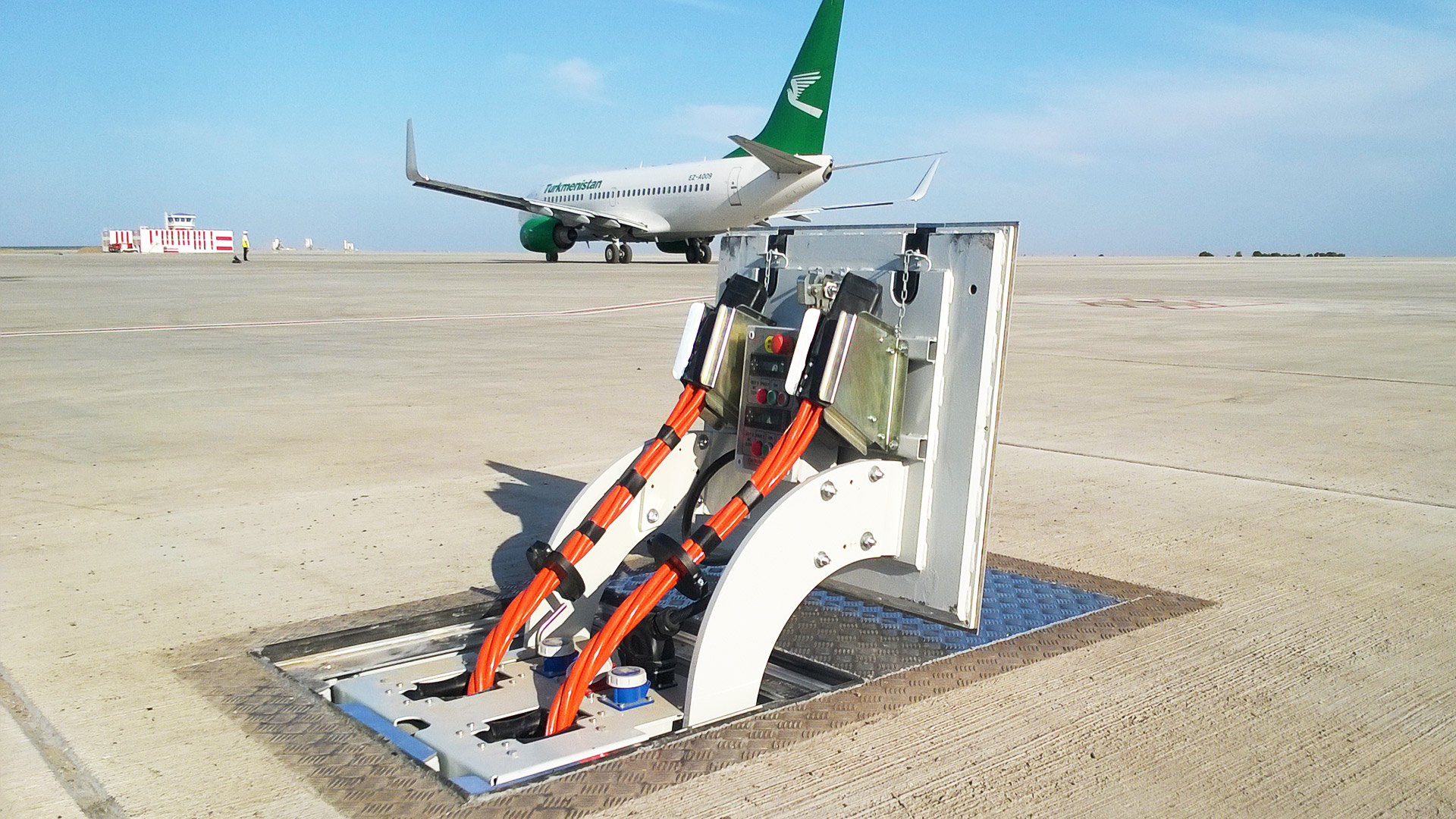

Standard Hatch PIT systems
The Standard Hatch PIT offers flexible power and utility connections directly at the aircraft stand, making it perfect for large aprons, MRO hangars, and high-traffic areas. It supports 400 Hz, 28.5 VDC, and 50/60Hz power options, along with a wide range of utility connections, including compressed air, PCA, potable water, blue water, sewer, grounding, RJ (Registered jack), fueling, and fuel ventilation exhaust. Built for maximum durability, these systems feature weatherproof lids rated for up to 90 tons (EN 124 F900), ensuring reliable performance in demanding environments. Additionally, it offers centralized integration for real-time monitoring and diagnostics.

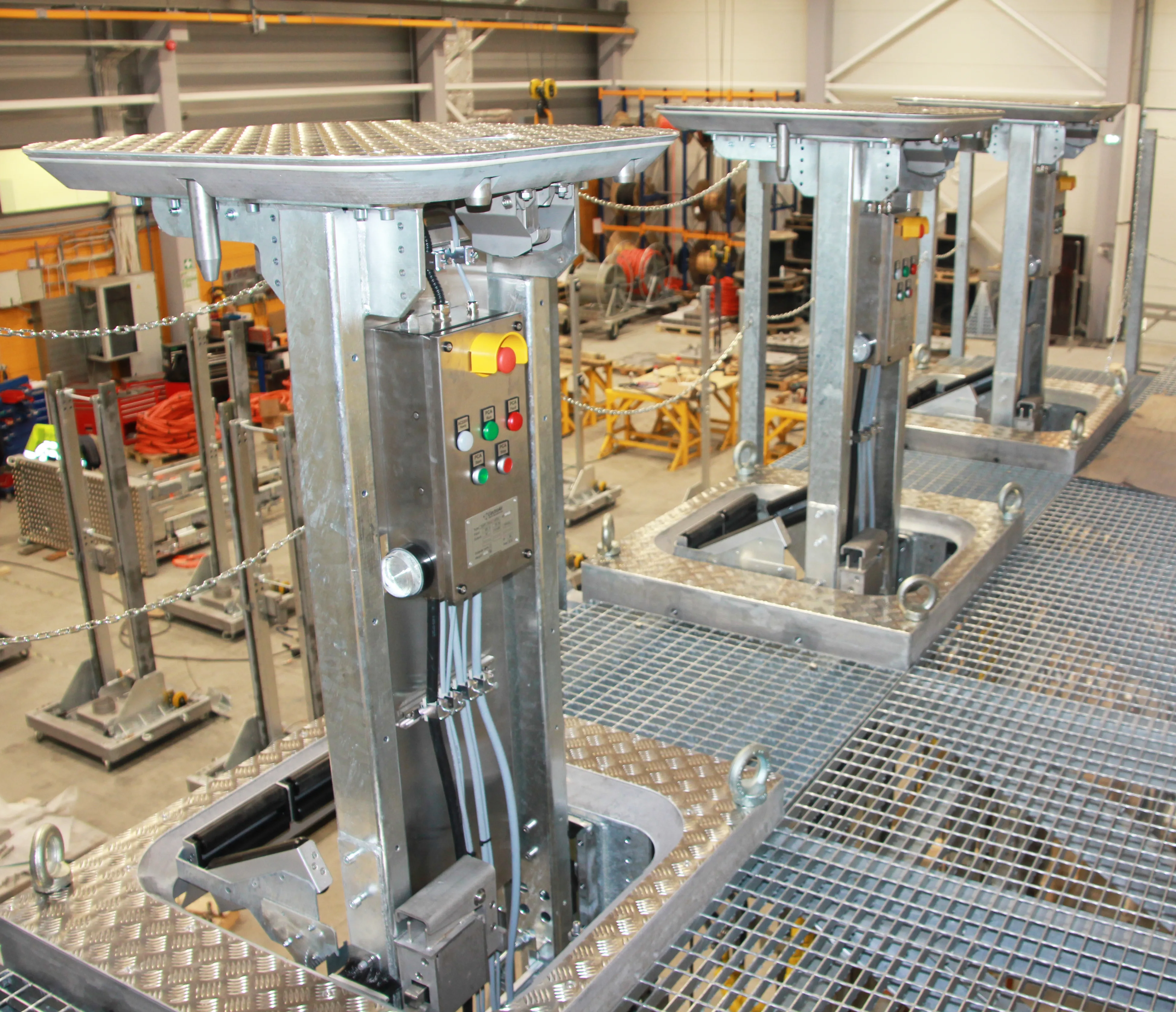

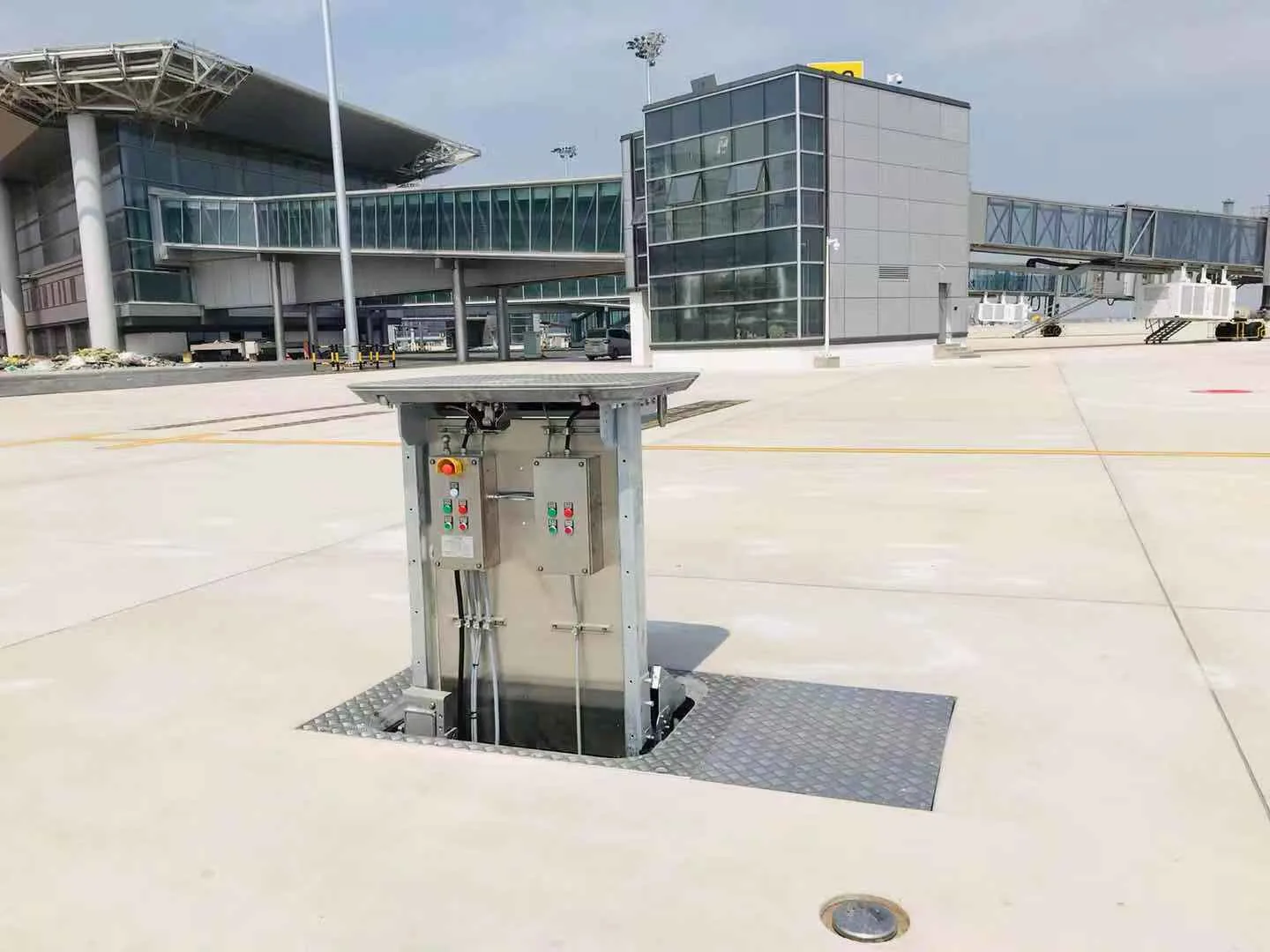

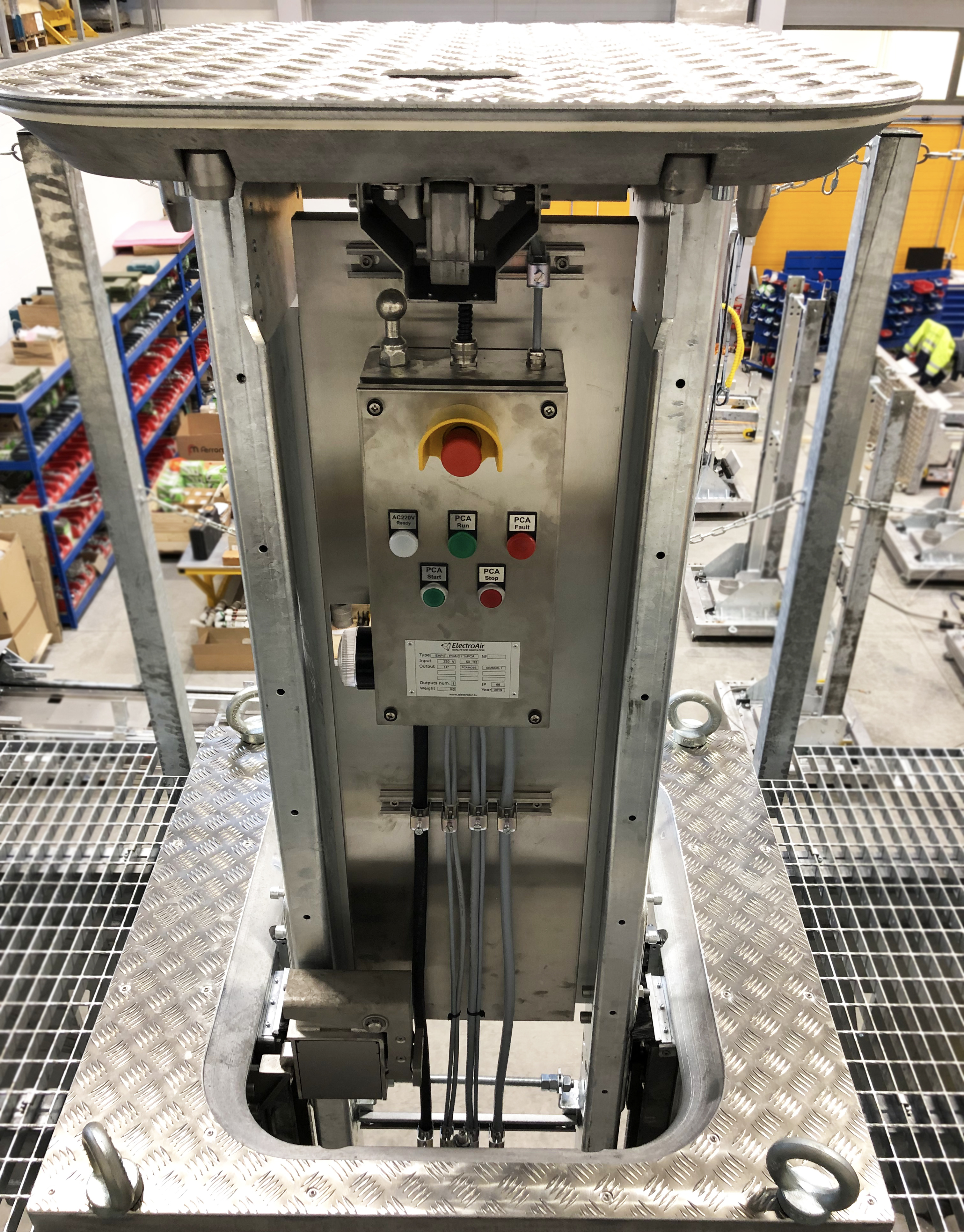

Pop-up PIT systems (narrow)
The Pop-up EAPIT (Narrow) is a compact, retractable PIT system, ideal for tight ramp spaces and specialized ground operations. It features a counterweight lid mechanism for effortless lifting and supports 400 Hz, 28.5 VDC, and 50/60Hz power outlets. This model also provides connections for compressed air, PCA, potable water, blue water, sewer, grounding, RJ (Registered jack), fueling, and fuel ventilation exhaust. Designed for quick deployment and reliable power access, it integrates seamlessly with centralized monitoring systems for real-time status updates.
Pop-up PIT systems (wide)
The Pop-up EAPIT (Wide) is a high-capacity, retractable PIT system designed for major airport terminals and complex MRO operations. It offers up to four 400 Hz or 28.5 VDC power outlets, two PCA hoses, and multiple 50/60Hz power sockets, providing flexible connectivity for even the most demanding ground operations. Additional features include compressed air, potable water, blue water, sewer, grounding, RJ (Registered jack), fueling, and fuel ventilation exhaust. Built for maximum operational efficiency, it includes a dedicated technical hatch for easy maintenance and streamlined component access, along with full integration into centralized monitoring systems for real-time status updates.
Why choose ElectroAir PIT systems?
ElectroAir’s PIT systems are designed to streamline ground support operations, offering reliable access to power, compressed air, PCA, and other utilities. Built for durability and efficiency, these systems ensure seamless integration into modern airport infrastructure.
Here’s why they’re trusted globally:
✅ Customizable configurations to match specific airport and ground operation needs
✅ Durable, weather-resistant design for harsh environments and high-traffic areas
✅ Integrated utility options – power, compressed air, PCA, water, grounding, and fuel supply for full operational flexibility
✅ Quick deployment with pre-assembled units for faster installation and reduced downtime
✅ Safe and efficient access with reinforced lids and advanced safety features
✅ Global support network for seamless maintenance and technical assistance
✅ Centralized system integration – PIT systems can transmit status signals to a building or airport management system for enhanced monitoring and control
Compare all PIT Systems
Mini Hatch PIT
Compact, underground hatch system designed for smaller ramps and specialized ground operations. Offers up to two 400 Hz or 28.5 VDC power outlets, compressed air, and water connections. Ideal for regional airports and remote airfields.
- Max load: 90 tons (EN 124 F900)
- Power options: 400 Hz / 28.5 VDC / 50/60Hz sockets
- Connections: Compressed air, potable water, blue water, sewer, grounding, RJ (Registered jack), fueling, fuel ventilation exhaust
- Design: Weather-resistant, robust enclosure
- Integration: Centralized system integration for real-time status monitoring
Standard Hatch PIT
Flexible power and utility connections directly at the aircraft stand. Built to withstand heavy loads and harsh weather conditions. Suitable for large aprons and high-traffic areas.
- Max load: 90 tons (EN 124 F900)
- Power options: 400 Hz / 28.5 VDC / 50/60Hz sockets
- Connections: Compressed air, PCA, potable water, blue water, sewer, grounding, RJ (Registered jack), fueling, fuel ventilation exhaust
- Design: Heavy-duty, weatherproof enclosure for maximum durability
- Integration: Centralized system integration for real-time status monitoring
Pop-up PIT (Narrow)
Compact, retractable PIT system designed for smaller ramp spaces. Offers up to two 400 Hz or 28.5 VDC power outlets, single PCA hose, and optional 50/60 Hz power sockets. Ideal for tight operational areas.
- Max load: 90 tons (EN 124 F900)
- Lid mechanism: Counterweight for easy lifting
- Power options: 400 Hz / 28.5 VDC / 50/60Hz sockets
- Connections: Compressed air, PCA, potable water, blue water, sewer, grounding, RJ (Registered jack), fueling, fuel ventilation exhaust
- Features: Quick deployment and reliable power access
- Integration: Centralized system integration for real-time status monitoring
Pop-up PIT (Wide)
Designed for high-traffic ramps and major airport terminals. Offers up to four 400 Hz or 28.5 VDC power outlets, two PCA hoses, and multiple 50/60 Hz power sockets for complex ground operations.
- Max load: 90 tons (EN 124 F900)
- Lid mechanism: Counterweight for easy lifting
- Power options: 400 Hz / 28.5 VDC / 50/60Hz sockets
- Connections: Compressed air, PCA, potable water, blue water, sewer, grounding, RJ (Registered jack), fueling, fuel ventilation exhaust
- Features: High capacity, flexible connectivity for complex operations
- Integration: Centralized system integration for real-time status monitoring
Need help finding the right PIT system?
Our team is here to guide you. Whether you’re looking for a compact hatch system for tight spaces or a high-capacity pop-up solution for major airport ramps, we can help you choose the right PIT system for your specific operational needs. Let’s optimize your ground support infrastructure together.
